詳細情報 |
|||
| 状態: | 良い | 保証: | 6ヶ月 |
|---|---|---|---|
| 株式: | 利用可能 | パッケージ: | カートン |
| ハイライト: | philips defibrillator printer M3536A,defibrillator printer M3535A,defibrillator machine printer parts |
||
製品の説明

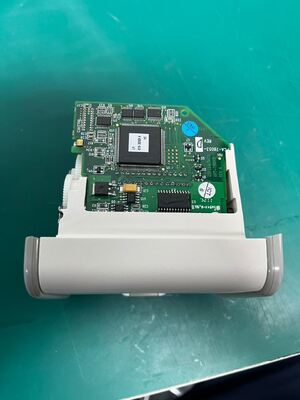

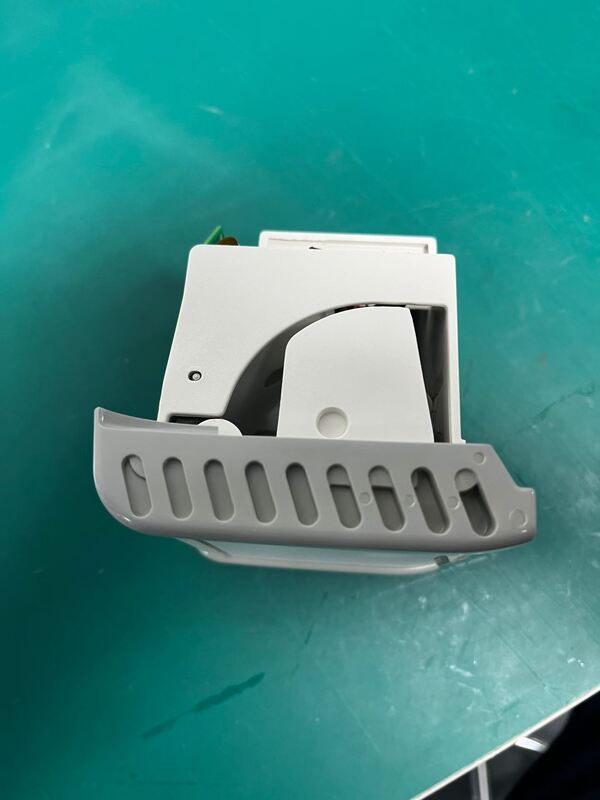

Philip M3536A (HeartStar MRx) Recorder / Printer Core Specifications
Divided into standard/optional configurations, printing specifications, functions, consumables, accessories and storage:
1. Hardware Configuration (Printer / Recorder)
Model: M3536A built-in thermal dot array strip chart recorder (integrated in defibrillator monitor)
Standard configuration: 50 mm paper width thermal printer
Optional configuration: 75 mm paper width thermal printer (more commonly used)
Printing method: Thermal dot array (thermal array)
Display screen: 8.4-inch color LCD, supports 4-channel waveform display
2. Printing Specifications
Paper feed speed: 25 mm/s or 50 mm/s optional
Print resolution: 1%
Printable content:
Real-time / 10-second delayed ECG strip chart (including event annotations and measured values)
12-lead ECG report (3×4 format)
Event summary, operation verification, configuration / status records, device information
Automatic printing: Supports automatic trigger printing for events, charging, defibrillation and alarms
3. Consumables (Chart Paper)
Standard paper size: 50 mm × 30 m (compatible with 50 mm printer)
Optional paper size: 75 mm × 30 m (compatible with 75 mm printer)
Type: Medical thermal chart paper (carbon-free, waterproof, smudge-proof)
4. Data Storage & Printing Linkage
Internal storage: 12 hours of continuous ECG waveforms and events, 50 copies of 12-lead reports
External storage: CompactFlash card (same capacity as internal storage)
Data export: Transmission via Bluetooth and CF card; review and reprint via supporting software
5. Environmental & Physical Parameters (Recorder)
Operating temperature: 0–40 °C
Storage temperature: −20–60 °C
Humidity: 10%–95% (non-condensing)
6. Common Faults & Maintenance Guidelines
No printing: Check paper compartment cover, clean thermal print head, verify paper roll installation direction and printer settings
Blurred waveform: Clean thermal print head, replace new chart paper, check paper feed speed settings
Maintenance cycle: Clean the thermal print head every 6 months; use original factory consumables
Integrated Printer / Recorder Part Numbers (M3536A Integrated)
50mm standard printer: M3536A-001 (default configuration)
75mm wide paper printer (option): M3536A-B04 (B04 to be specified when ordering)
Print module spare part number: M3535-60201 (maintenance spare part No.)
Consumables (Chart Paper) Part Numbers
50mm×30m thermal paper: 989803165241
75mm×30m thermal paper: 989803165251
Key Accessory Part Numbers (Common for M3536A)
Lithium battery: M3538A (989803174211)
12-lead ECG cable: M3508A (989803197111)
Defibrillation electrode pads: 989803139261
