詳細情報 |
|||
| ブランド: | フィリップ | モデル: | M1520A |
|---|---|---|---|
| ピン: | 5つのピン | ||
| ハイライト: | Philips M1520A ECG trunk cables,ECG trunk cables for Philips modules,patient monitor ECG cables with warranty |
||
製品の説明
Basic Information
- Model Number: M1520A (AHA standard), M1530A (IEC standard)

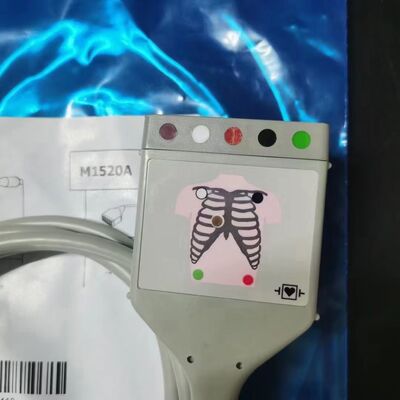

- Product Name: 5-Lead ECG Trunk Cable
- Brand: Philips
- Type: Reusable ECG Trunk Cable
- Patient Use: Adult / Pediatric
- Packaging: 1 piece per bag
Physical & Electrical Specifications
- Cable Length: 2.7 m (9 ft)
- Cable Material: TPU jacket, nylon braided, gold-plated pins
- Color: Gray
- Lead Wire Diameter: 4 mm
- Number of Leads: 5 leads
- Resistance: 1 kΩ
- Latex-free: Yes
- Sterile: No
Connectors & Compatibility

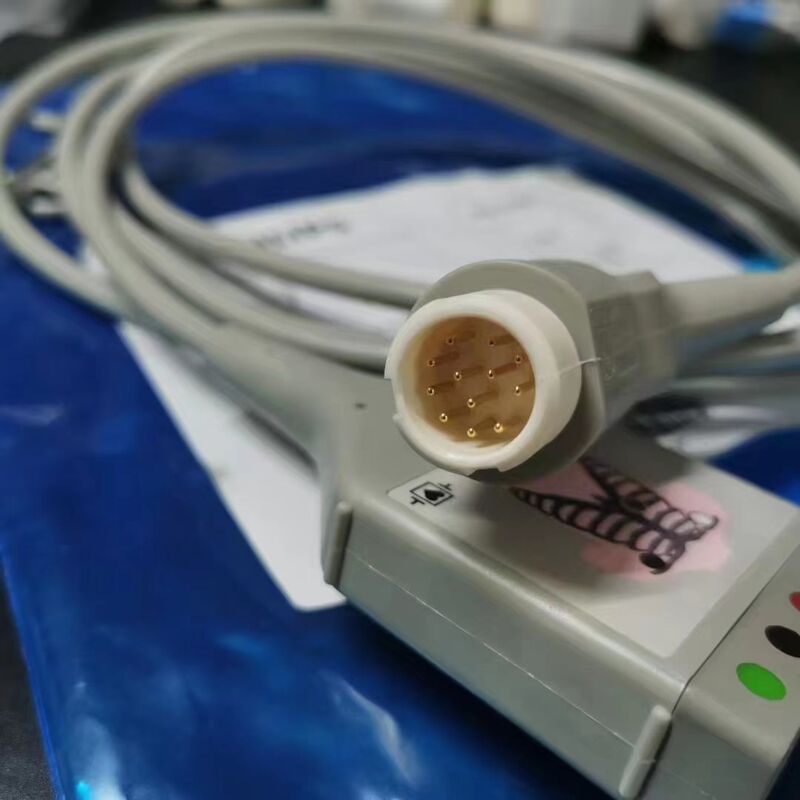

- Monitor Connector: Round 12‑pin shielded connector with keyway

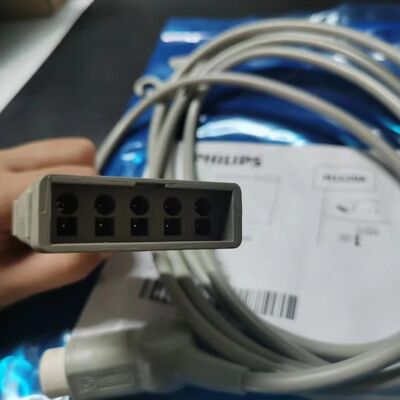

- Lead Wire Connector: Dual 5‑pin connector for 5-lead set
- Color Coding: AHA (for M1520A)
- Compliance: CE, ISO, FDA, RoHS, ISO 10993-1/5/10, AAMI / IEC standards
Compatible Devices
- Philips Modules: M1001A/B, M1002B, M3000A, M3001A, M3002A
- Philips Monitors: MP2 (M8102A), MP5 (M8105A), M4735A, HeartStart MRx/XL (M3535A/M3536A), SureSigns series
Replacement Models
- M1530A, M1560A, M1570C
- OEM equivalents: 989803103941, CB-81585R, NEPH1520
